NorTide IP67 Druckknopf schwarz 20A 12V / 24V grune LED
Rüsten Sie Ihr Armaturenbrett mit NorTide auf – die perfekten Druckknöpfe und Schalter für ein luxuriöses Aussehen und zuverlässige Funktionalität!
Spezifikationen:
IP67 wasserdicht – staubdicht und tauchfähig
Aus schwarz eloxiertem Aluminium – für ein cooles Aussehen!
12 V/24 V Mehrspannung – Geeignet für alle Boote!
Schalter bis zu 20 Ampere – keine sperrigen Relais mehr
Mit Stecker erhältlich – für einfachen Anschluss in Ihrem Boot oder Wohnmobil
Momentan oder rastend – Geeignet für z. B. eine Hupe (Momentan) oder Beleuchtung (rastend)
In vielen Farben erhältlich
Scrollen Sie nach unten für weitere Informationen!
Technical properties

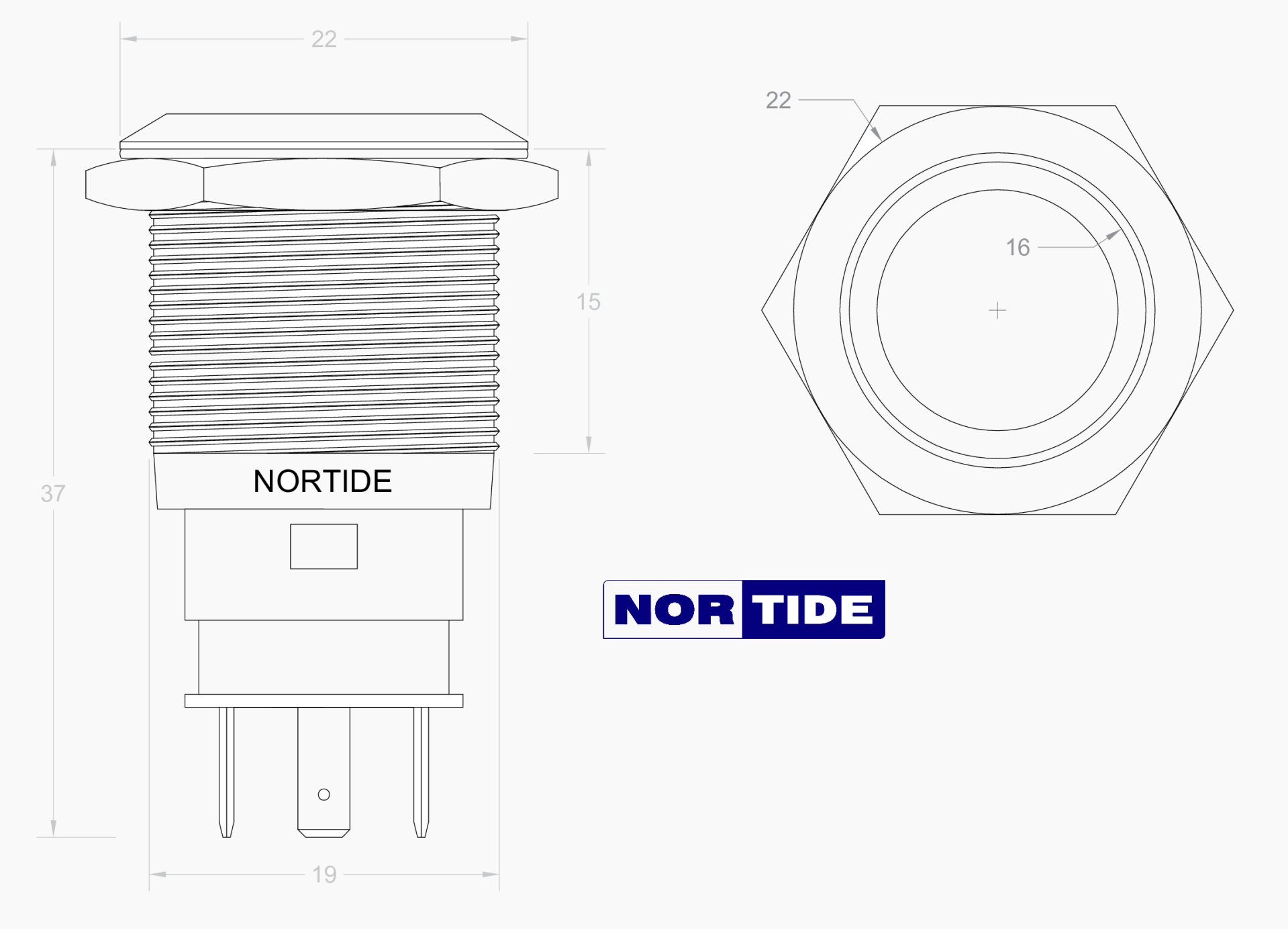

Installation diameter
Outer diameter
Voltage
Maximum current
Color LED
Contacts
Switching
Material properties
Housing material
Knob material
Contact material
Base material
Environmental properties
IP value
Operating temperature
Operating pressure force
Nut tightening torque
19mm
22mm
12V/24
20A
Red
1X NO
Momentary or latching
Anodized aluminum
Silver Alloy
PBT
IP67
-20 to +50 °C
3 - 5N
5 - 14Nm
Electrical properties
Operating temperature: -10 to +50 °C
Mechanical life: 55,000 cycles
LED Lifespan: 40,000 hours
Front IP Rating: IP67 (front)
IP Value rear: IP65, with connector
Contact resistance:
Nut tightening torque: 5- 14Nm
NorTide Marine is a brand that specializes in high-quality switches and electronics for various applications. There are many different switches available, but not all switches have the quality you are looking for.
Look no further!
NorTide has an extensive selection of switches of the very best quality, designed with an eye for detail and with the most beautiful appearance. Each type of NorTide switch combines functionality with a stylish design and is carefully selected and tested to meet the highest demands. Whether you are looking for durability, reliability or a refined finish,
With a NorTide push button or switch, you will notice from the first time you press that it is not just 'the first available' switch. These switches immediately give you the feeling of quality combined with robustness. Perfect for use in your boat, RV, machine or other application!
